300W Pulse laser cleaning machine

Short Description:

Application scenarios: It can be widely used to remove all kinds of attachments (paint/rust/oil pollution/residue, etc.) on metal and non-metallic surfaces. Its high energy density is particularly suitable for the cleaning of high-threshold attachments such as aluminum alloy oxide layer/black dense iron oxide.


Product Detail

Product Tags

he equipment adopts a wheeled cabinet structure, making it easy to move. The upper part of the cabinet has a unique storage box design, which is convenient for storing cleaning heads, cables, and various accessories. The air-cooled structure makes the equipment easy to use and easy to maintain. The cleaning system provides 8 scanning modes (customizable) and supports 9 languages (customizable). The cleaning head is compact and lightweight, with a weight of<1.2kg. Support modbus communication protocol for easy automation control. Single mode pulse laser beam has good quality, high peak power, controllable cleaning accuracy, and wide applicability. It can be used for cleaning surface rust, oxides, coatings, and other attachments of metal materials (steel, aluminum, copper, etc.).

Technical parameter table

Operating   environment
Model LC300W
Supply  voltage Single phase220V± 10% 、50/60Hz AC
Power  consumption ≤2000W
Working  environment temperature 5 ℃   40 ℃
Working environment humidity ≤80%
Optical  parameters
Average  laser power ≥300W
Power  instability <5%
Laser Working  Mode Pulse
Pulse width 13-500ns
Maximum  monopulseenergy 2mJ
Power regulation range  (%) 0- 100( Gradient Adjustable)
Repeat frequency   (kHz) 1 -3000   (Gradient Adjustable )
Fiber  length 5m
Cooling  mode Air  cooling
Cleaning  Head  Parameters
Scan range (length * width) 0mm- 110mm, continuously adjustable;supporting 8  scanning modes
Scanning  frequency The maximum is not less than 300Hz
Field mirror focal length( mm) 210mm   ( Optional 160mm/254mm/330mm/420mm)
Depth of focus About 5 mm

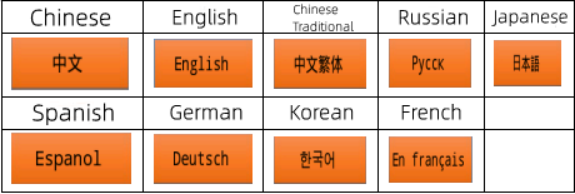

At present, the system supports Chinese, traditional Chinese, English, Russian, Japanese, Spanish, German, Korean, French and other 9 languages, and also supports custom languages.
